Created port bundles can be edited. You can add/delete ports, set the main port, change port settings, etc.
To edit a port bundle, do the following:

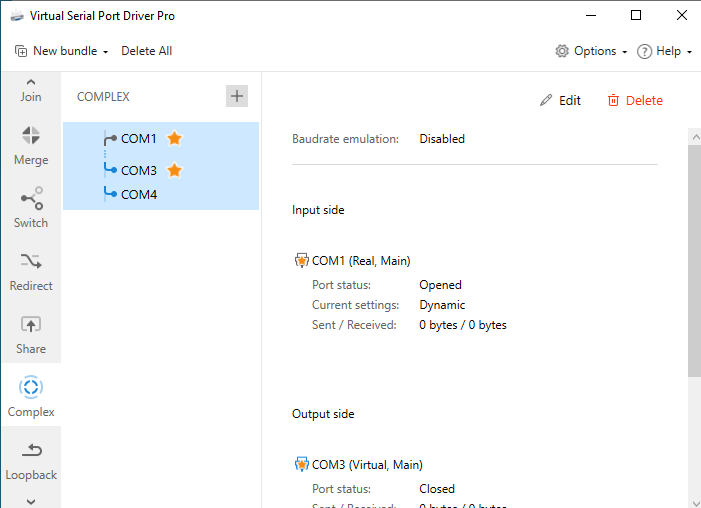

1. On the Bundle tree, click on the bundle you want to edit:

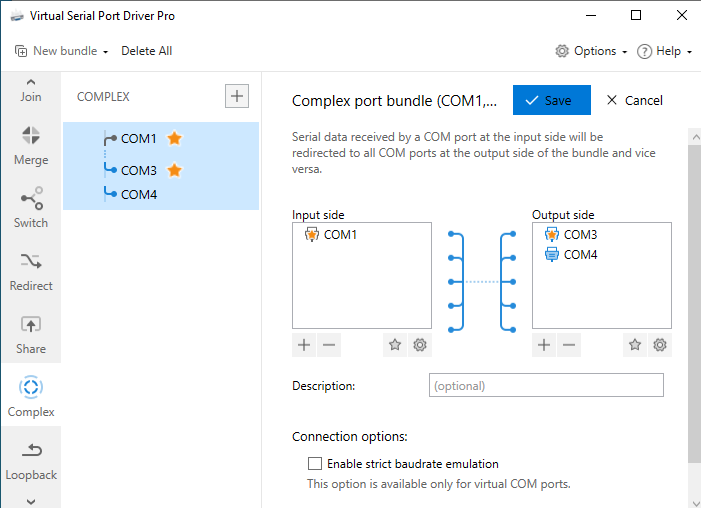

2. Click “Edit” to switch to the bundle settings panel:
3. You can add ports to the bundle using the “+” button, delete ports from the bundle with the “-” button. Also, you can set a port as the main by clicking the
button. To undo this action, click
For a quick access to the port’s settings, click
Edit the bundle to your liking, then click the “Save” button.
To delete a bundle, do the following:
1. On the Bundle tree, click on the bundle you want to delete, then click the “Delete” button and confirm the deletion in the pop-up window:
To delete all bundles:
If you need to delete all port bundles in the Bundle tree, click “Delete All” in the main menu and then confirm the deletion in the pop-up window.
