Joining Several Real Ports

Available only in the PRO edition.

To join several real ports into one virtual, follow these steps:

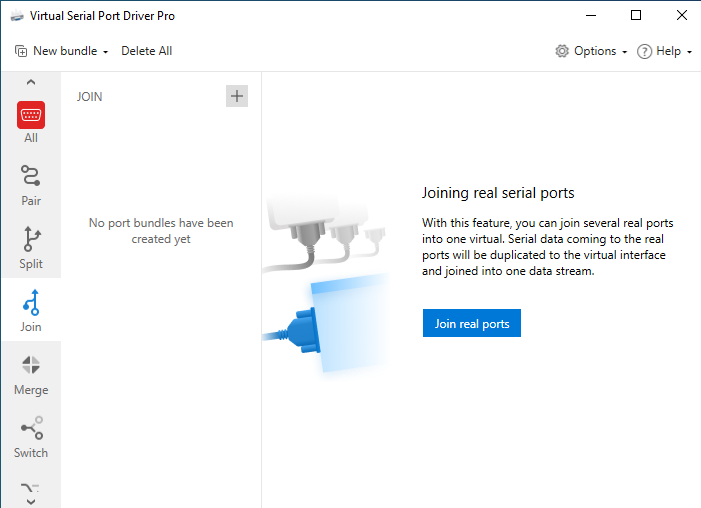

1. Сreate a new port bundle. To do that, click the “Join” icon on the vertical menu at the left, then click the “Join real ports” button:
2. Choose real ports you want to join (click “+” button to add a port to the list, and “-” to remove) and a virtual port to join into, so the data will be sent from the real ports to the virtual one, and vice versa.

Set the main port in the bundle by selecting the required port and clicking the button. To undo this action, click For any selected port, you can use the button to access its settings.

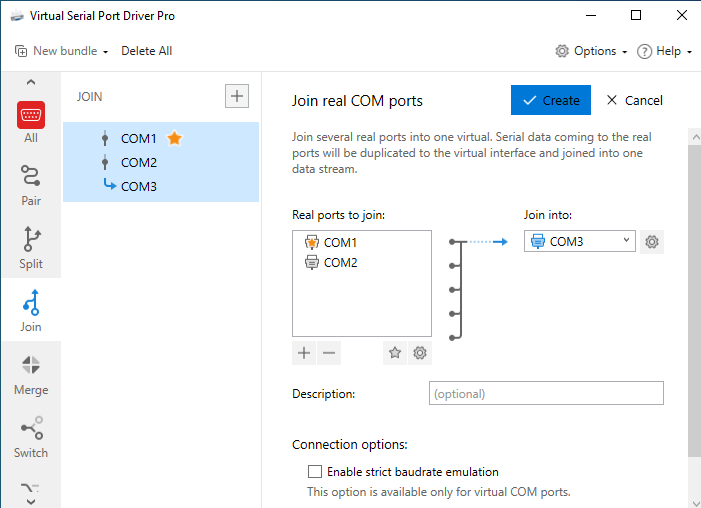

Once you’ve added all the required ports to the list, you can enter a custom name for this bundle into the “Description” field for easier identification. Also, you can enable strict baudrate emulation by ticking the respective checkbox:

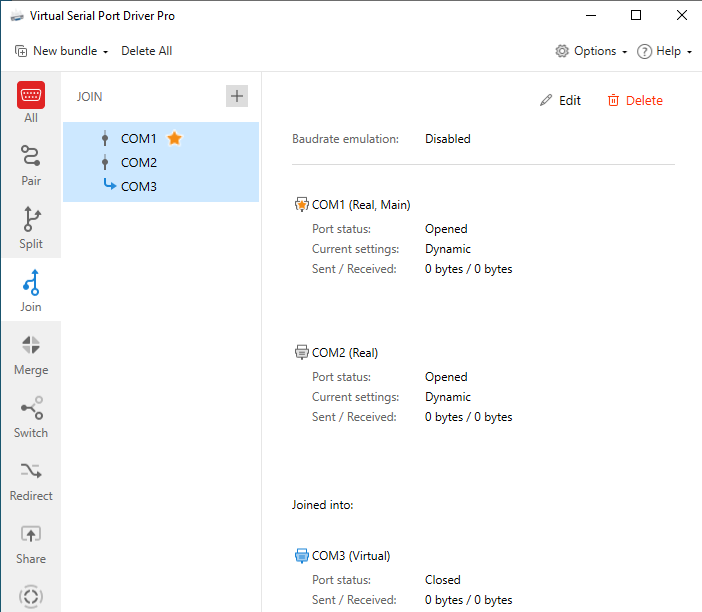

3. Click the “Create” button. Now you can click this port bundle in the Bundle tree to view its settings:

Note: If you receive an error message when creating a port bundle, you can analyze the information shown in the Activity log.
